Steel, a ubiquitous material found in everything from skyscrapers to paper clips, undergoes a fascinating journey from raw ore to finished product. The steel manufacture process is a complex, multi-stage operation involving high temperatures, precise chemical reactions, and sophisticated shaping techniques. Understanding this process provides valuable insight into the material’s properties and its diverse applications.
Key Takeaways:
- The steel manufacture process involves ironmaking, steelmaking, and various forming techniques.
- Different steel grades are produced by carefully controlling the chemical composition and processing parameters.
- Sustainability is increasingly important in modern steel production, driving innovations in recycling and energy efficiency.
Raw Materials and Ironmaking in the Steel Manufacture Process
The foundation of steel manufacture process lies in iron ore, primarily iron oxides such as hematite (Fe₂O₃) and magnetite (Fe₃O₄). These ores are extracted from the earth through mining operations. Other essential raw materials include coal, used as a source of carbon and energy, and limestone (CaCO₃), which acts as a flux to remove impurities.
The first major step is ironmaking, typically carried out in a blast furnace. The iron ore, coke (processed coal), and limestone are fed into the top of the furnace, while preheated air is blasted in from the bottom. The coke combusts, generating intense heat that reduces the iron oxides to molten iron. The limestone reacts with impurities like silica and alumina to form slag, which floats on top of the molten iron and is tapped off separately.
The molten iron, known as pig iron, is still too brittle for most applications due to its high carbon content (typically 4-5%). It also contains other impurities like silicon, manganese, phosphorus, and sulfur. The next step, steelmaking, is crucial for refining the iron and achieving the desired properties.
Steelmaking: Refining and Alloying in the Steel Manufacture Process
Steelmaking aims to reduce the carbon content of pig iron and remove other impurities, as well as to add alloying elements to achieve specific properties. Several steelmaking processes are used today, with the basic oxygen furnace (BOF) and the electric arc furnace (EAF) being the most prominent.
In the BOF process, molten pig iron and scrap steel are charged into a large vessel. High-purity oxygen is blown into the mixture, oxidizing the excess carbon and other impurities. Fluxes like lime and dolomite are added to form slag, which absorbs the oxidized impurities. The process is rapid and efficient, producing large quantities of steel.
The EAF process uses electric arcs to melt scrap steel and sometimes direct reduced iron (DRI) or hot briquetted iron (HBI). It offers greater flexibility in terms of feedstock and allows for more precise control over the steel’s chemical composition. EAFs are particularly well-suited for producing specialty steels and those with high alloy content.
During steelmaking, alloying elements such as manganese, chromium, nickel, molybdenum, vanadium, and titanium can be added to the molten steel to tailor its properties. For instance, adding chromium creates stainless steel, which is resistant to corrosion. The precise composition of the steel determines its grade and intended application, often adhering to standards such as those defined by the American Iron and Steel Institute (AISI) or European standards (e.g., EN standards, which may align with gb specifications for similar materials in other regions).
Forming and Shaping: Turning Molten Steel into Usable Products in the Steel Manufacture Process
Once the steelmaking process is complete and the desired chemical composition is achieved, the molten steel is solidified and shaped into various products. This is typically done through casting processes.

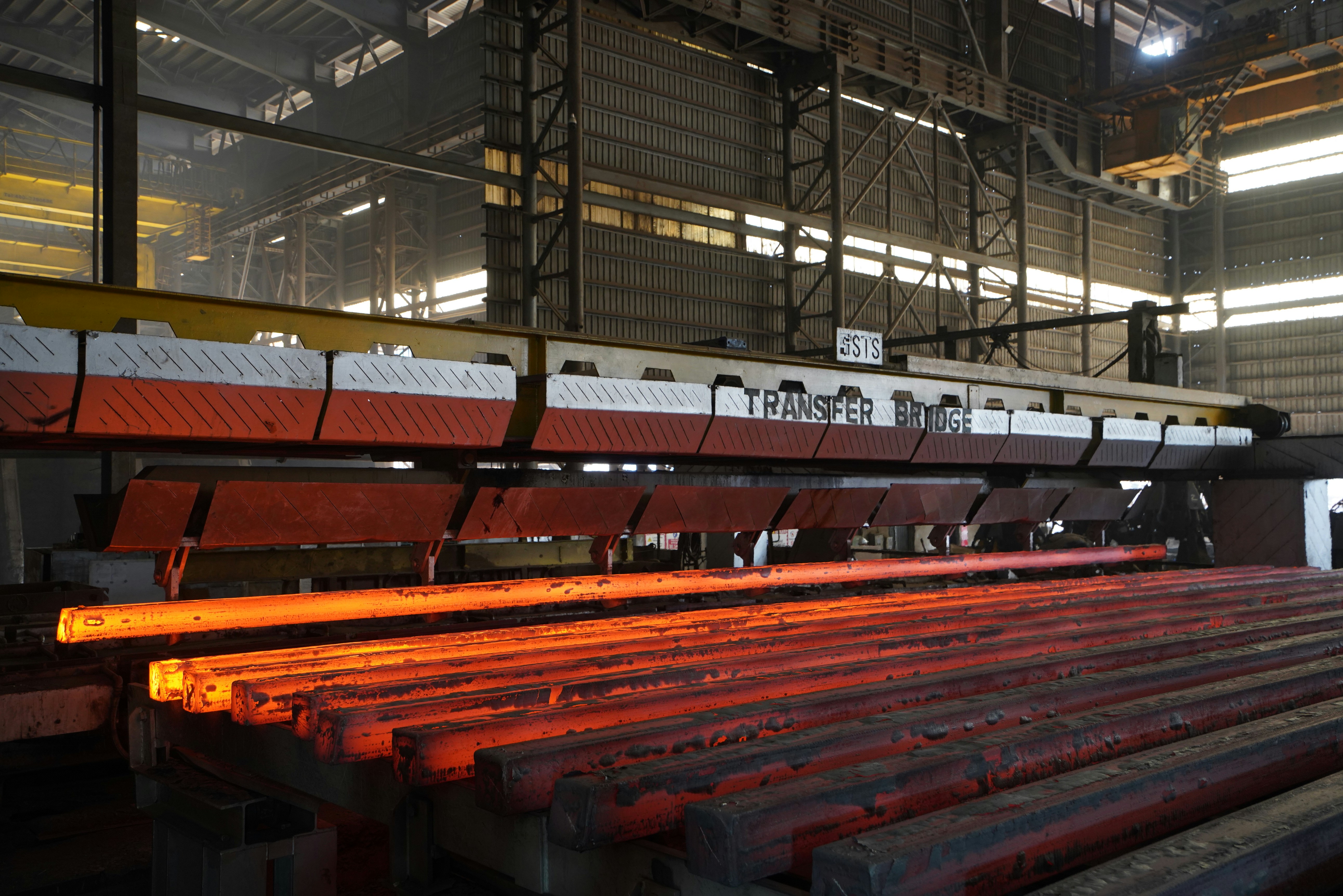

Continuous casting is the most common method for producing semi-finished products like slabs, billets, and blooms. Molten steel is poured into a water-cooled mold, where it begins to solidify. The partially solidified strand is continuously withdrawn from the mold and further cooled until fully solid. The continuous strand is then cut into desired lengths.
Ingot casting, an older method, involves pouring molten steel into individual molds to create ingots. These ingots are then reheated and rolled or forged into desired shapes.
After casting, the steel undergoes further processing to achieve the final dimensions and properties. This can involve hot rolling, cold rolling, forging, extrusion, drawing, and other metalworking techniques. Hot rolling is performed at high temperatures to reduce the steel’s thickness and improve its mechanical properties. Cold rolling is done at room temperature to achieve tighter tolerances and a smoother surface finish.
Steel Grades, Applications, and Future Trends in the Steel Manufacture Process
The properties of steel can be tailored to a wide range of applications by carefully controlling the chemical composition, processing parameters, and heat treatments. Different steel grades are defined by their carbon content, alloying elements, and mechanical properties.
Carbon steels are the most common type of steel, with varying carbon content influencing their strength and weldability. Alloy steels contain specific alloying elements to enhance properties like strength, toughness, corrosion resistance, and wear resistance. Stainless steels are known for their excellent corrosion resistance due to the presence of chromium. Tool steels are designed for high hardness and wear resistance, making them suitable for cutting tools and dies.
The applications of steel are incredibly diverse, spanning construction, transportation, manufacturing, energy, and many other sectors. Steel is used in buildings, bridges, vehicles, machinery, pipelines, appliances, and countless other products.
The steel manufacture process is constantly evolving, driven by factors such as environmental concerns, energy efficiency, and the demand for higher-performance materials. There is increasing emphasis on recycling steel scrap and reducing carbon emissions in steel production. Innovations in steelmaking technologies, such as the use of hydrogen as a reducing agent, are being explored to reduce the industry’s environmental footprint. Advanced high-strength steels (AHSS) are being developed to reduce weight and improve fuel efficiency in vehicles. The future of the steel manufacture process will likely involve a greater focus on sustainability, resource efficiency, and the development of innovative materials for specialized applications.
